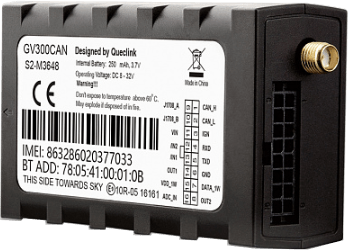

Queclink GV300CAN
The GV300CAN is a compact GNSS tracking device designed for a wide variety of vehicle tracking applications. The model features CAN and J1708 ports that decode information from vehicle digital buses (CAN bus and J1708). It also has multiple interfaces that can support a wide range of external accessories.
Show more
Location and tracking
- GPS, GLONASS
- Continuous and interval tracking modes
Mobile networks
- Quad Band
- 2G / 3G
Power supply
- Build-in battery Li-Polymer, 250 mAh
- External power supply 8V to 32V DC
Inputs and outputs
- 3 Digital inputs
- 1 Digital output
- 1 Analog input
- 1-Wire
Other features
- Local and remote management
- Multiple I/O interfaces including smart input, ignition detection and fuel level sensing
- 1-wire supporting temperature sensors and iButton driver ID
- Internal 3-axis accelerometer supporting driving behavior monitoring, power saving and motion detection
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
| Weight | 65 g (2.29 oz.) |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 4 |
| Number of outputs | 2 |
| Analog sensor | Yes |
Input Fields
State Fields
Events monitoring
