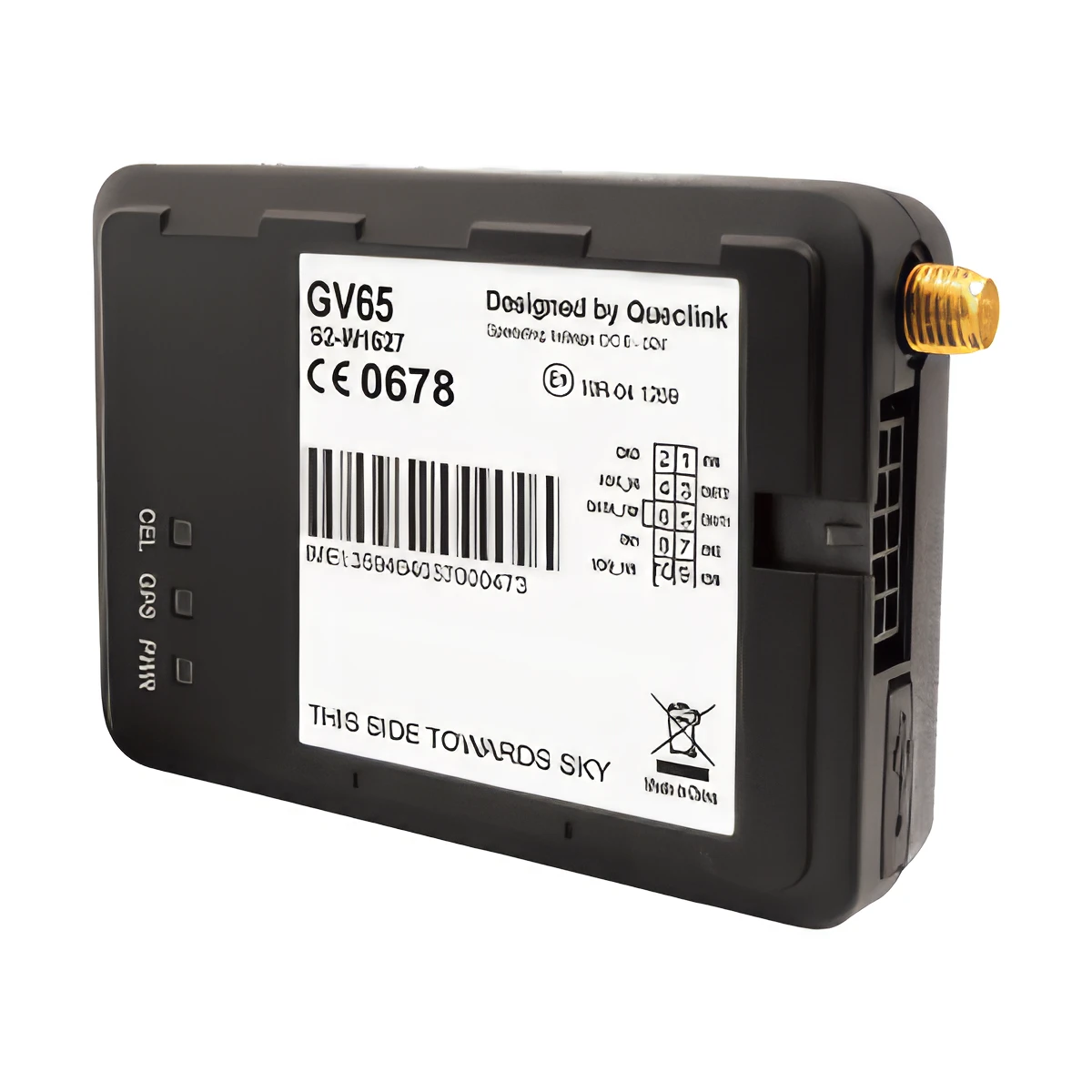

Queclink GV65
Queclink GV65 is a universal tracking device that supports GPS and GLONASS systems. It has several input-output interfaces, including 1-wire interface for temperature and driver control as well as built-in 3-axis accelerometer. The customer can get all information about about emergency situations, driving behavior and many other factors.
The External GNSS antenna can be easily used to improve the work of GPS tracking system as well as GLONASS system.
Package contents
Package contents include:
- Queclink GV65 device
- User cable
Location and tracking
Queclink GV65 model is embedded with GPS and it also supports GLONASS technology. As the back-up, when no satellites signals are available, it uses Cell ID location (also known as LBS-tracking).
Mobile networks
Queclink GV65 uses a Quad-band GSM 2G module that allows to operate it all over the world.
Power supply
For the Queclink GV65, VIN (PIN1) / GND (PIN2) are the power input pins. The input voltage range for this device is from 8V to 32V. The device is designed to be installed in vehicles that operate on 12V or 24V systems without the need for external transformers.
Local and remote management
Queclink GV65 tracker can be fully controlled over GPRS, including configuration of tracking modes and controlling outputs. There is also a wide list of SMS commands in a human-friendly format, on which device always replies back. It supports remote APN settings configuration by SMS.
Interfaces
The GV65 has a 10 PIN interface connector. It contains the connections for power, I/O, etc. The device has 1 analog and 2 digital inputs, also it has 1-Wire interface
LED Indication
Queclink GV65 has three LEDs:
- GPS LED
- GSM LED
- Power LED
Accessories
The manufacturer offers original accessories:
- GPS antenna
- USB data cable
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| Server port | 47764 |
| Auto registration | Yes |
General information
| Purpose | Vehicle |
Connectivity information
| Network signal level | Yes |
| Network operator ID | Yes |
Location information
| GNSS signal level | Yes |
| LBS | Yes |
| Forced GNSS location update over GPRS | Yes |
| Forced GNSS location update over SMS | Yes |
| Forced LBS location update over GPRS | Yes |
Features
| Remote outputs control | Yes |
| Odometer | Yes |
| Motion sensor | Yes |
| Hardware key | Yes |
Interfaces
| Discrete inputs | 3 |
| Number of outputs | 2 |
| Analog sensor | Yes |
