TopFlyTech WarriorX 100

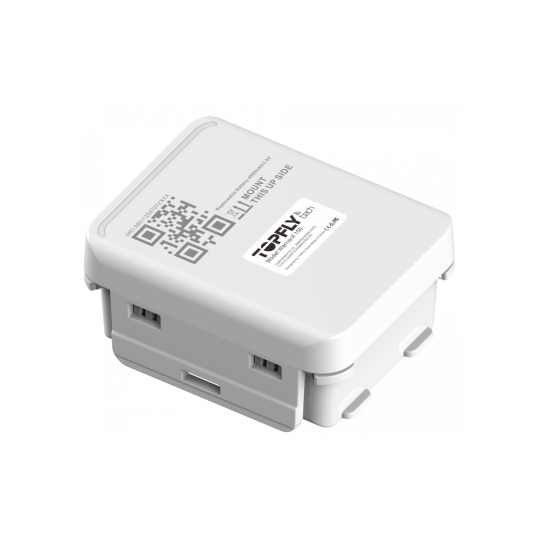

The TopFlyTech WarriorX 100 is a robust asset GPS tracker designed for outdoor use. Its flexible reporting interval allows for regular location updates to minimize power consumption and can switch to more frequent reporting in SVR mode. The device is built with a thick, solid casing and rugged construction suitable for outdoor environments. It comes with a long-life battery, with options of a non-rechargeable 4000 mAh or an optional 8000 mAh battery. The WarriorX 100 has an IP67 waterproof rating, having been tested in a 5-meter underwater pressure environment for 15 hours. It features removal alerts that notify users when the device is detached from the asset. Finally, the tracker is user-friendly, coming with an installation panel that allows for easy mounting using magnets, screws, polyurethane, or zip ties.


Server connection

EU platformtracker.navixy.com (52.57.1.136)
US platformtracker.us.navixy.com (13.52.37.2)
Server port47744
Auto registrationYes

General information

PurposeAsset
Weight160 g (5.64 oz.)
Size82.8x66.9x35.7 mm (3.26x2.63x1.41 in)
Waterproof classIP67
Internal antenna (GNSS)Yes
Internal antenna (Connection)Yes

Connectivity information

Network signal levelYes
Network operator IDYes
Cellular network typeLTE Cat 1: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66, GSM 850/900/1800/1900
Cellular network generationLTE Cat 1, 2G

Location information

GNSS signal levelYes
LBSYes
Forced GNSS location update over GPRSYes
GPSYes
GLONASSYes
BeidouYes

Features

OdometerYes
Motion sensorYes
Built-in batteryYes
Battery capacity4000 mAh
