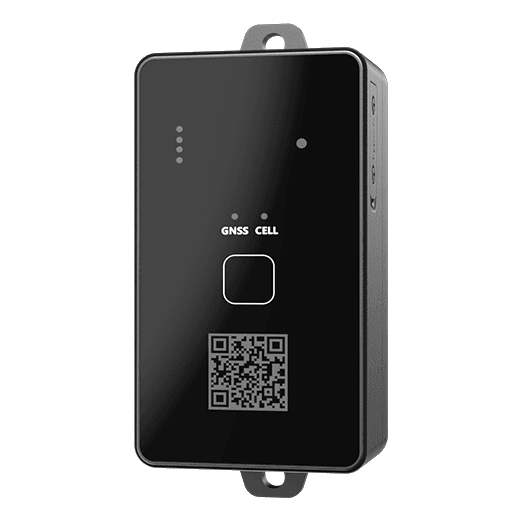

Jimi JM-LL701
    GPS Tracker
    Asset
    Integrated

    Jimi JM-LL701

    Jimi IoT (Concox)

    The LL701 is a Long-Standby Asset Tracker designed for the management of heavy-duty vehicles such as heavy trucks and construction vehicles. Using the CR123A battery allows for more availability and better portability, and the replaceable battery design can help fleet managers effectively reduce fleet maintenance costs. Depending on reporting frequency, its low consumption can provide up to 5 years of working time on 3 batteries, while it also supports an external power supply for longer working life. In addition to these features, the IP67 waterproof rating and the suite of event-triggered alerts will make the LL701 a perfect solution for non-real-time tracking of heavy-duty vehicles, goods and other assets.

    Server connection

    EU platformtracker.navixy.com (52.57.1.136)
    US platformtracker.us.navixy.com (13.52.37.2)
    MENA platformtracker.me.navixy.com (34.166.104.189)
    Server port47755
    Auto registrationYes

    Technical details

    Protocol

    Canonical name
    jimi
    Default port
    47755
    Slug
    jimi_47755

    Hardware I/O

    Digital inputs
    0
    Digital outputs
    0
    Output control
    none
    Track control
    Supported

    Supported interfaces(4)

    Capabilities(13)

    Altitude
    APN Settings
    Auto Registration
    Gprs Location Request
    GSM Lbs
    GSM Signal Level
    Local Time Issue
    Location Request
    Odometer
    Satellites
    Sim Card
    Temperature Sensor
    WIFI Lbs

    Alert rules(21)

    Battery Off
    Case Intrusion
    Detach
    Distance Control
    Excessive Driving
    Excessive Parking
    Idling Soft
    In Out Zone
    Location Response
    Low Power(em)
    Offline
    Over Speed Reported
    Parking
    Power On
    Route
    Sensor Range
    Speedup
    State Field Control
    Task Status Change
    Track Change
    Vibration

    (em) = emulated at platform level rather than native on the device.

    Sensor & data inputs(2)
