GPS Tracker
Vehicle
Integrated

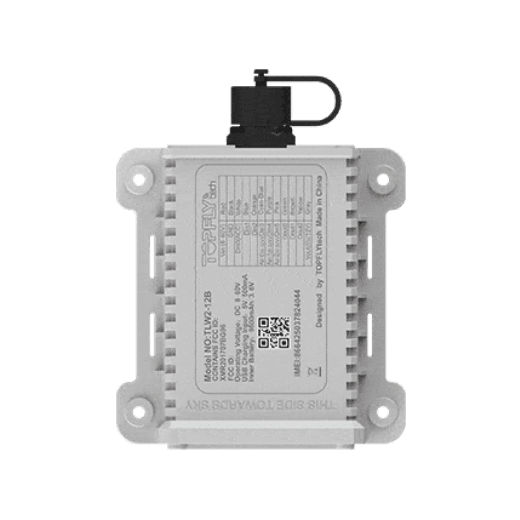

TopFlyTech TLW2-12B
TopFlyTechTopFlyTech TLW2-12B is a device that can be powered when wired and operate on only battery when trailers standing alone (power disconnected). The multiple inputs and outputs could be used for connecting accessories.
AI project guide
Your device. Your client's next workflow.
Describe the outcome. Explore the data, logic and integration decisions behind it.
What would you like to build with TopFlyTech TLW2-12B?
Start with your client’s goal. We’ll explore the signals, logic and integration it needs.
All connection settings and developer-maintained specifications continue below.
Server connection
| EU platform | tracker.navixy.com (52.57.1.136) |
| US platform | tracker.us.navixy.com (13.52.37.2) |
| MENA platform | tracker.me.navixy.com (34.166.104.189) |
| Server port | 47744 |
| Auto registration | Yes |
Interfaces
| Digital inputs | 6 |
| Number of outputs | 4 |
Technical details
Protocol
- Canonical name
- topfly
- Default port
- 47744
- Slug
topfly_47744
Hardware I/O
- Digital inputs
- 6
- Digital outputs
- 4
- Output control
- default
- Track control
- Supported
Supported interfaces(13)
Capabilities(15)
Altitude
APN Settings
Auto Registration
Board Voltage
Detach Sensor
Gprs Location Request
GSM Lbs
GSM Signal Level
Hardware Key
Odometer
Satellites
Sim Card
SOS Button
Supports DNS
Temperature Sensor
Alert rules(29)
Backup Battery Low
Battery Off
Crash Alarm
Detach
Distance Control
Driver Change
Excessive Driving
Excessive Parking
Fuel Level Leap
GSM Damp
Harsh Driving
Idling
Idling Soft
In Out Zone
Input Change
Low Power
Offline
Output Change
Over Speed Reported
Parking
Power On
Route
Sensor Range
SOS
Speedup
State Field Control
Task Status Change
Track Change
Vibration
(em) = emulated at platform level rather than native on the device.
Sensor & data inputs(8)
