Ascend Group MT1X
    GPS Tracker
    Vehicle
    Integrated

    Ascend Group MT1X

    Ascend Group (i-Trac GPS)

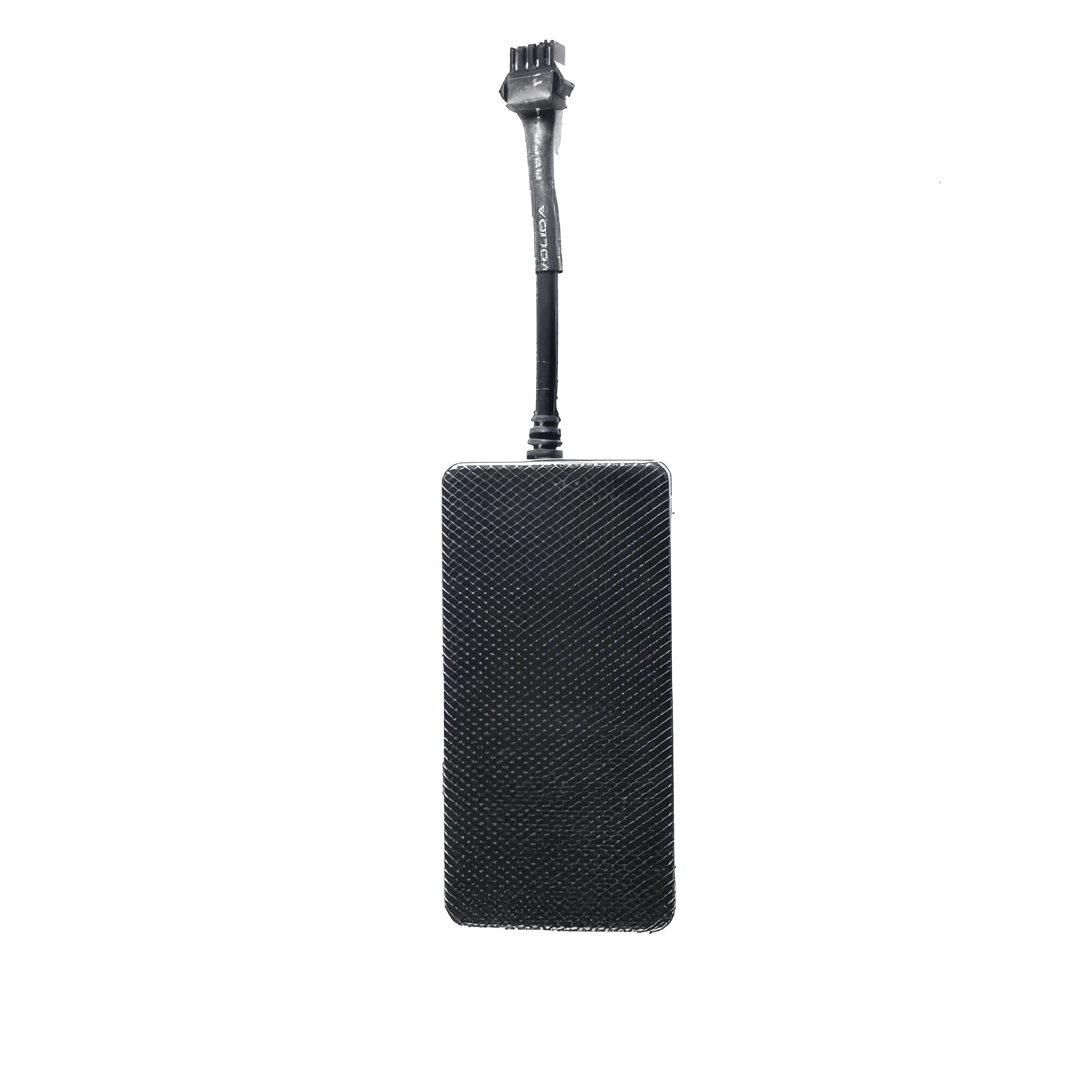

    Ascend Group MT1X is a device that uses the Global Positioning System to determine the precise location of a vehicle to which it is connected and record the position of the asset at regular intervals. The recorded location data can be stored in the storage, or it can be transmitted to a monitoring platform. The device has a relay and the necessary wires for connection. Also, this model has SOS button and micrphone for voice monitoring.

    Start Free TrialContact Sales

    Server connection

    EU platformtracker.navixy.com (52.57.1.136)
    US platformtracker.us.navixy.com (13.52.37.2)
    MENA platformtracker.me.navixy.com (34.166.104.189)
    Server port47735
    Auto registrationYes

    Interfaces

    Digital inputs1
    Number of outputs1

    Technical details

    Protocol

    Canonical name
    cantrack
    Default port
    47735
    Slug
    cantrack_47735

    Hardware I/O

    Digital inputs
    1
    Digital outputs
    1
    Output control
    default
    Track control
    Supported

    Supported interfaces(1)

    Capabilities(8)

    APN Settings
    Auto Registration
    GSM Lbs
    GSM Signal Level
    Local Time Issue
    Odometer
    Sim Card
    SOS Button

    Alert rules(17)

    Battery Off
    Distance Control
    Excessive Driving
    Excessive Parking
    Idling Soft
    In Out Zone
    Input Change
    Offline
    Output Change
    Parking
    Route
    Sensor Range
    SOS
    Speedup
    State Field Control
    Task Status Change
    Track Change

    (em) = emulated at platform level rather than native on the device.

    Sensor & data inputs(2)
